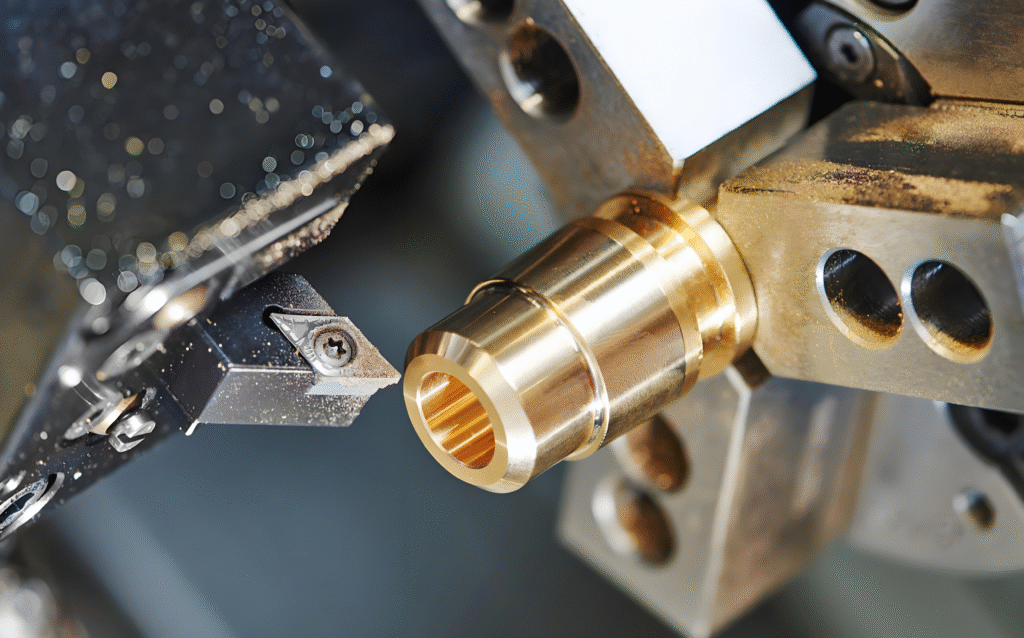

CNC turning is a precision machining process controlled by computer numerical control (CNC) technology. It uses a rotating workpiece and stationary cutting tools to remove material and create precise cylindrical parts. This manufacturing method is a cornerstone of modern industry due to its high accuracy, repeatability, and efficiency.
CNC turning, namely computer numerical control turning, its basic principle is to precisely control the movement of the lathe through computer programs. During the machining process, the workpiece is firmly fixed on the spindle of the lathe and rotates at high speed. At the same time, the cutting tool performs cutting operations on the surface of the workpiece along a pre-set path, thereby processing the workpiece into the required shape and size.
This process is inseparable from an accurate coordinate system. Usually, CNC lathes adopt the Cartesian coordinate system, where the X-axis is responsible for controlling the radial movement of the tool, and the Z-axis controls the axial movement of the tool. Through the precise control of these two coordinate axes by the computer, the cutting tool can realize various complex movement trajectories on the workpiece, and then complete diverse machining tasks. For example, when machining a shaft part with steps and tapers, the tool needs to perform multiple cutting operations at different depths in the X-axis direction to form steps; at the same time, it moves at a certain angle in the Z-axis direction to machine the tapered part.
Creating 3D Models: First, using computer-aided design (CAD) software, an accurate 3D model of the part is constructed according to the design requirements of the product. This model will serve as the basis for subsequent processing, and it describes in detail the key information such as the shape, size, and tolerance of the part. Taking the crankshaft of an automobile engine as an example, in CAD software, engineers need to accurately draw the shape and positional relationship of each journal, connecting rod journal, balance weight, and other parts of the crankshaft.
Generating G-Code: With the help of computer-aided manufacturing (CAM) software, the created 3D model is converted into G-code that the machine tool can recognize. G-code is a kind of numerical control programming language, which contains a series of processing instructions such as the tool’s movement trajectory, cutting speed, and feed rate. For example, the G01 instruction represents linear interpolation movement, and the G02 instruction represents clockwise circular interpolation movement. Through these instructions, every action of the lathe is precisely controlled to ensure the accuracy and consistency of the machining process.
Selecting the Appropriate Lathe: According to the material, size, shape, and machining accuracy requirements of the part, the most suitable CNC lathe is selected. Different types of lathes vary in processing capacity and precision range. For example, for machining high-precision small parts, a precision CNC lathe may be chosen; while for machining large shaft parts, a lathe with a high-torque spindle and a large machining stroke is required.
Installing Tools and Workpieces: The appropriate cutting tool is installed on the tool post of the lathe, ensuring that the tool is installed firmly and accurately. At the same time, the workpiece to be machined is precisely clamped on the spindle of the lathe to ensure that the center of the workpiece coincides with the rotation center of the spindle. For example, when machining a shaft part with a diameter of 50mm, a suitable chuck needs to be selected to clamp the workpiece, and by adjusting the clamping force of the chuck, it is ensured that the workpiece will not displace during high-speed rotation.
Tool Setting Operation: Tool setting is a crucial step in CNC turning, whose purpose is to determine the relative positional relationship between the tool and the workpiece, so that the movement trajectory of the tool can be accurately controlled during the machining process. By using tools such as a tool setter, the offset value of the tool is measured and input into the control system of the lathe. For example, for an external cylindrical turning tool, it is necessary to measure its offset in the X-axis and Z-axis directions relative to the origin of the workpiece coordinate system, and then input these data into the tool compensation register. In this way, during the subsequent machining process, the lathe can automatically adjust the position of the tool according to these compensation values.
Rough Machining: In the rough machining stage, the main goal is to quickly remove a large amount of excess material from the workpiece, leaving a suitable allowance for subsequent finishing. Usually, a larger cutting depth and feed rate are adopted to improve machining efficiency. For example, when machining a shaft part with a diameter of 100mm, in the rough machining stage, parameters such as a cutting depth of 3mm and a feed rate of 0.3mm/r may be selected for processing. At this time, the cutting tool will perform multiple cutting operations on the workpiece according to the pre-set rough machining path, gradually reducing the diameter of the workpiece to a size close to the final dimension.
Finish Machining: After rough machining, the finish machining stage begins. The focus of this stage is to ensure the dimensional accuracy and surface quality of the part to meet the design requirements. Therefore, a smaller cutting depth, feed rate, and higher cutting speed are adopted. For example, when finishing the above-mentioned shaft part, the cutting depth may be reduced to 0.1mm, the feed rate is 0.05mm/r, and the cutting speed is increased to about 1500r/min. Through such parameter settings, the cutting tool can perform fine cutting on the workpiece surface, controlling the dimensional accuracy of the part within a very small tolerance range while obtaining a good surface finish.
Real-time Monitoring and Adjustment: During the entire machining process, the operator needs to pay close attention to the operating status of the lathe and the machining situation. By observing the machine’s display screen, listening to the cutting sound, and using measuring tools to measure the machined parts in real-time, possible problems such as tool wear, cutting vibration, and dimensional deviation can be found in a timely manner. Once a problem is found, corresponding adjustment measures, such as replacing the tool or adjusting the cutting parameters, are taken immediately to ensure the smooth progress of the machining process and the machining quality of the parts.

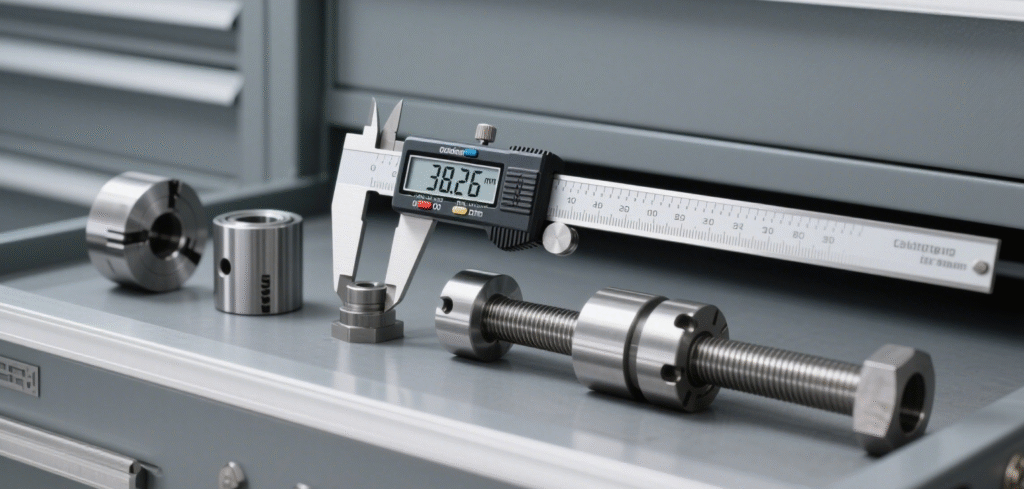

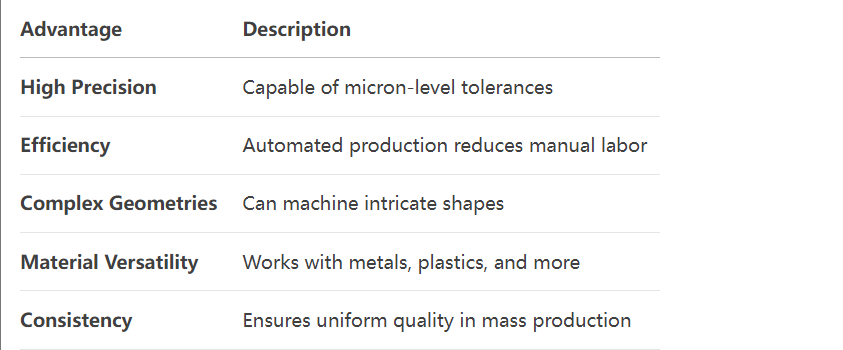

Precise Dimensional Control: CNC turning can achieve extremely precise dimensional control, with a tolerance range usually reaching ±0.01mm or even smaller. This enables the machined parts to meet various high-precision assembly requirements. For example, in the aerospace field, the turbine blades and shaft parts of the engine have extremely high requirements for dimensional accuracy. CNC turning can ensure that the dimensional accuracy of these parts is within a very small tolerance range, thereby ensuring the efficient and stable operation of the engine.
Automated Machining: CNC lathes have a high degree of automation. Once the machining program is written and the machine tool is debugged, the lathe can automatically perform continuous machining according to the instructions of the program without frequent manual intervention. This greatly reduces the time and labor intensity of manual operations and improves production efficiency. Compared with traditional manual lathes, CNC turning can save a lot of machining time when mass-producing the same parts.
Quick Tool Change and Tool Path Optimization: Modern CNC lathes are usually equipped with a quick tool change device, which can complete tool changes in a short time, reducing the downtime caused by tool changes. At the same time, by optimizing the tool path and reasonably arranging the cutting sequence and feed mode, machining efficiency can be further improved. For example, when machining a part with multiple steps and holes, by reasonably planning the tool path, the idle stroke of the tool can be avoided, and the machining time can be reduced.
Adapting to Multiple Materials: CNC turning can process many different types of materials, including metal materials (such as aluminum alloys, copper alloys, stainless steel, carbon steel, etc.) and non-metallic materials (such as plastics, wood, rubber, etc.). Regardless of the hardness and toughness of the material, as long as the appropriate tool and cutting parameters are selected, CNC turning can effectively process it. This makes it widely applicable in the applications of different industries.
Reducing the Impact of Human Factors: Since CNC turning is an automated machining process controlled by computer programs, the impact of human factors on machining quality is reduced. Compared with traditional manual lathes, the impact of factors such as the operator’s skill level and fatigue on the fluctuation of machining quality is greatly reduced. This enables each machined part to maintain a stable quality level, improving the consistency and reliability of the product.
Airframe Structural Part Manufacturing: The machining of airframe structural parts is also inseparable from CNC turning. Parts such as the piston rod of the landing gear and the girder of the wing have very high requirements for strength and precision. CNC turning can machine high-precision parts that meet the requirements, ensuring the safety and stability of the aircraft during flight.
Engine Part Machining: Many parts of automobile engines, such as crankshafts, camshafts, cylinder blocks, and cylinder heads, need to be processed by CNC turning. Taking the crankshaft as an example, it is one of the key components of the engine, and its machining accuracy directly affects the performance and reliability of the engine. CNC turning can precisely machine the journals, connecting rod journals, and other parts of the crankshaft, ensuring its dimensional accuracy and surface quality, thereby improving the working efficiency and service life of the engine.
Machining Efficiency and Precision: When machining rotationally symmetric parts, CNC turning usually has higher machining efficiency because the movement of the tool is relatively simple and the cutting process is more continuous. In terms of precision, both can reach a high level, but the specific precision also depends on factors such as the performance of the machine tool, the selection of tools, and the optimization of the machining process. Generally speaking, for high-precision shaft parts, CNC turning can more easily ensure their dimensional accuracy and roundness; while for complex-shaped parts, CNC milling has advantages in ensuring shape accuracy.
Automation Degree and Production Efficiency: CNC turning has a high degree of automation. The machining process is controlled by computer programs, and the operator only needs to perform simple operations and monitoring, which greatly improves production efficiency. Traditional manual turning, on the other hand, completely relies on the operator’s skills and experience. During the machining process, it is necessary to manually adjust the position of the tool and cutting parameters frequently, resulting in low production efficiency. For example, when mass-producing the same parts, CNC turning can complete a large number of machining tasks in a short time, while manual turning takes more time.
CNC turning technology continues to drive manufacturing forward with unmatched precision and efficiency. Whether you’re an engineer sourcing precision parts or a procurement specialist evaluating suppliers, understanding CNC turning’s capabilities will give your projects a competitive edge.
For more information on CNC turning services or expert machining solutions, contact our professional technical team, Prototi, for free consultation.
Start your project today. Get free DFM from professional engineer at ProtoTi.
