Full Analysis of Anodizing Process: An Industry Guide from Principles to Applications

What Is Anodizing?

Anodizing is an electrochemical conversion process that creates a protective oxide film on the surface of metals—most commonly aluminum—by immersing them in an electrolyte solution and passing an electric current through the setup. The metal part becomes the anode (positive electrode) in this electrolytic cell, while cathode plates (typically made of aluminum) complete the circuit. During the process, oxygen ions from the electrolyte combine with aluminum atoms at the surface, forming a porous aluminum oxide layer that is integral to the base metal rather than a mere coating. This porous structure allows for subsequent coloring and sealing, enhancing both the material’s performance and appearance .​

Unlike plating or painting, which apply a separate layer to the surface, anodizing produces a finish that grows from the metal itself. This results in exceptional adhesion—the oxide layer cannot peel or chip away under normal conditions. The thickness of the anodized layer can be precisely controlled, ranging from thin decorative coatings (0.0001″ thick) to thick, wear-resistant layers (up to 0.002″ or more for hardcoat anodizing), making it adaptable to diverse application requirements .

How Does the Anodizing Process Work?

The anodizing process consists of several critical stages, each contributing to the final properties of the treated metal:

Pretreatment: The aluminum parts undergo thorough cleaning to remove oils, dirt, and oxides. This typically involves degreasing with alkaline solutions followed by acid etching to create a uniform surface. Some applications require mechanical polishing for a glossy finish before anodizing.

Anodizing Bath: Cleaned parts are immersed in an electrolyte solution—most commonly sulfuric acid, though chromic acid, phosphoric acid, or boric-sulfuric acid mixtures are used for specific applications. The electrolyte temperature, concentration, and exposure time vary according to the desired oxide properties.

Electrical Current Application: Direct current is passed through the bath, with the aluminum parts as the anode. As electricity flows, oxygen is released at the anode, reacting with aluminum to form aluminum oxide (Al₂O₃). The porous structure of this oxide layer develops naturally as the process progresses.

Coloring (Optional): The porous oxide layer readily absorbs dyes. Organic dyes create vibrant decorative colors, while inorganic pigments offer greater UV resistance. For a metallic appearance, electrolytic coloring deposits metal salts within the pores.

Sealing: The final step closes the pores in the oxide layer to prevent contamination and enhance corrosion resistance. Common methods include immersion in boiling water (which hydrates the oxide) or using nickel acetate solutions, which provide superior sealing for high-performance applications .

The Science Behind Anodizing

Electrochemical Fundamentals

Anodizing is an electrolytic passivation process that thickens the natural oxide layer on metals like aluminum. When a direct current (DC) is applied in acidic electrolytes (e.g., sulfuric, chromic, or phosphoric acid), oxygen ions react with the aluminum substrate to form a dense aluminum oxide (Al₂O₃) layer. Key parameters:

• Voltage: 12-24V for Type II (sulfuric acid anodizing)
• Temperature: 18-22°C (affects pore size)
• Current Density: 1.5-3 A/dm²

Microstructure Characteristics

The oxide layer consists of:

1. Barrier Layer: 10-100 nm thick, non-porous Al₂O₃ adjacent to the metal.
2. Porous Layer: Hexagonal cells with central pores (10-150 nm diameter), enabling dye absorption.

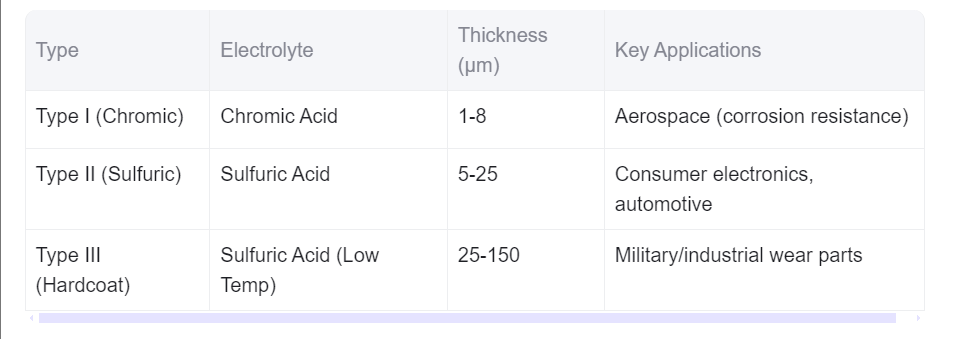

Types of Anodizing Processes

Type I: Chromic Acid Anodizing

This process uses chromic acid as the electrolyte, producing a thin (0.00002″ to 0.0001″ thick), dense oxide layer with excellent corrosion resistance and adhesion properties. Its minimal impact on the base metal’s fatigue strength makes it ideal for aerospace components, welded assemblies, and precision machined parts where dimensional stability is critical. However, due to environmental concerns surrounding hexavalent chromium (a known carcinogen), chromic acid anodizing is being phased out in many regions. It is gradually replaced by more environmentally friendly alternatives like boric-sulfuric acid anodizing (BSAA), which meets aerospace specifications such as Boeing’s BAC 5632 while eliminating chromium use .

Type II: Sulfuric Acid Anodizing

The most widely used anodizing method, sulfuric acid anodizing creates a porous oxide layer ranging from 0.0001″ to 0.001″ thick. This versatility allows for both decorative applications (through dyeing) and functional uses requiring moderate corrosion resistance. The process balances performance and cost-effectiveness, making it suitable for architectural components, consumer electronics enclosures, automotive trim, and optical parts. Sulfuric acid anodizing offers easier waste treatment compared to chromic acid processes, contributing to its popularity in sustainable manufacturing practices .

Type III: Hardcoat Anodizing

Also known as hard anodizing, this process uses concentrated sulfuric acid at lower temperatures to produce a thick (0.0005″ to 0.002″+), dense oxide layer with exceptional hardness and wear resistance. Hardcoat anodizing is specified for components subject to extreme abrasion, such as valves, gears, and machine parts. The thick oxide layer also provides excellent electrical insulation, making it valuable for electronic applications. Additionally, hardcoat anodizing can salvage worn or slightly oversized parts by building up their dimensions to meet specifications .

Key Benefits of Anodized Aluminum

Anodizing provides numerous advantages over alternative surface treatments:

• Exceptional Corrosion Resistance: The oxide layer acts as a barrier against moisture, chemicals, and environmental contaminants. This makes anodized aluminum ideal for outdoor applications, marine environments, and industrial settings. Studies show sulfuric acid anodizing provides superior corrosion protection compared to traditional chromic acid processes for alloys like 7075 and 6061 .​

• Enhanced Durability: The hard oxide layer resists abrasion, wear, and impact. Hardcoat anodizing can achieve hardness values exceeding 60 Rockwell C, comparable to some tool steels.​

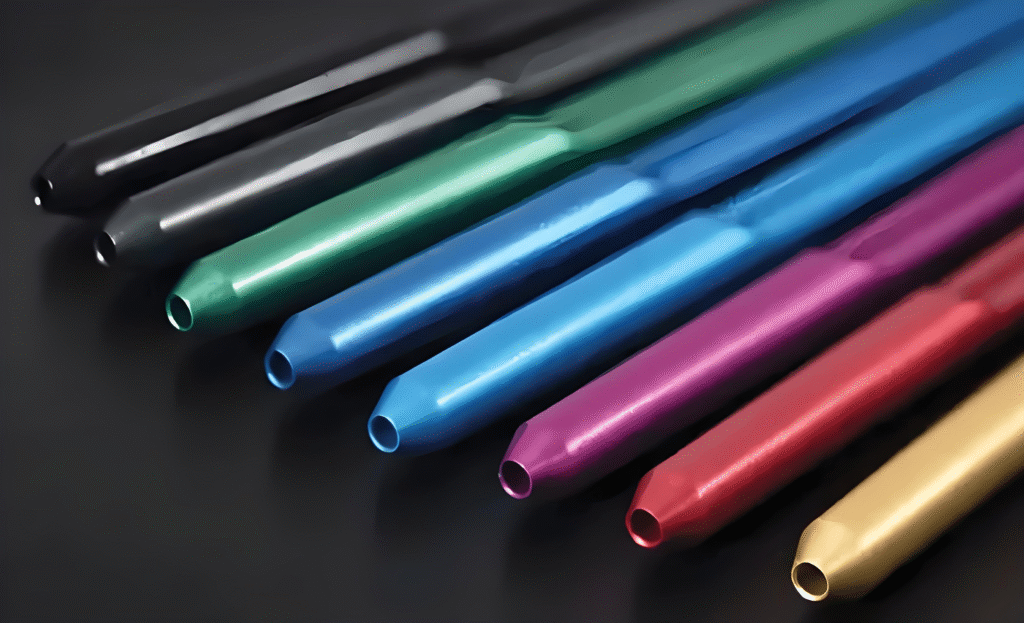

• Aesthetic Versatility: Anodized aluminum accepts a wide range of colors through dyeing or electrolytic coloring. These colors penetrate the oxide layer rather than sitting on the surface, resulting in better fade resistance than painted finishes.​

• UV Stability: Properly sealed and colored anodized surfaces resist fading from sunlight exposure. Using nickel acetate sealants and UV-stable dyes enhances this property, making anodized aluminum suitable for architectural applications and automotive exteriors .​

• Eco-Friendliness: Unlike many plating processes, anodizing produces no volatile organic compounds (VOCs) and can be performed using environmentally responsible electrolytes. The process is energy-efficient, and aluminum’s recyclability aligns with sustainable manufacturing practices.​

• Electrical Insulation: Thick anodized layers provide effective electrical insulation, useful for electronic components and industrial machinery.​

• Cost-Effectiveness: Anodizing offers a favorable balance of performance and cost compared to other high-performance surface treatments. Its longevity reduces maintenance and replacement costs over a product’s lifetime.

Applications Across Industries

Anodized aluminum’s unique combination of properties makes it indispensable across diverse sectors:

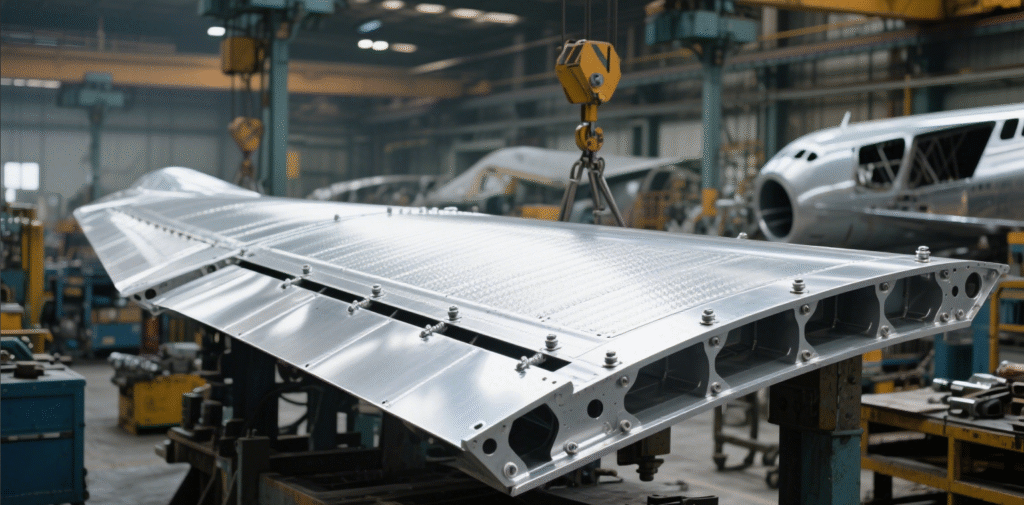

Aerospace and Aviation

The aerospace industry relies heavily on anodizing for corrosion protection and fatigue resistance. Chromic acid anodizing (and its replacements like BSAA) treats critical components such as aircraft skins, hydraulic fittings, and structural parts. Boric-sulfuric acid anodizing meets stringent specifications for paint adhesion on aircraft exteriors, ensuring long-term performance in extreme environments .

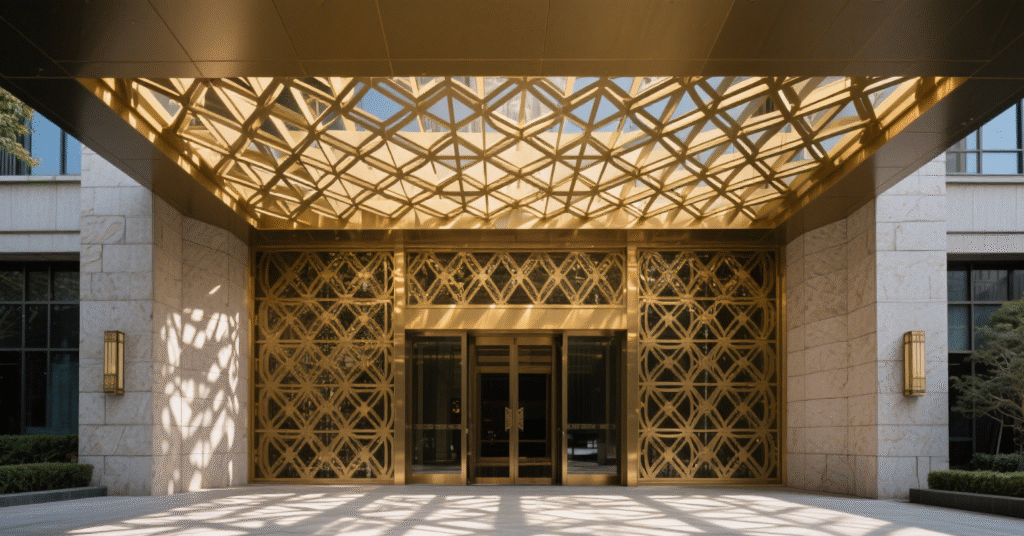

Architecture and Construction

Anodized aluminum enhances building facades, windows, doors, and roofing systems. Its corrosion resistance and color stability make it ideal for both modern high-rises and historical renovations. Architectural specifications often require minimal color shift (ΔE) over time, a standard anodized finishes can meet with proper sealing and dye selection .

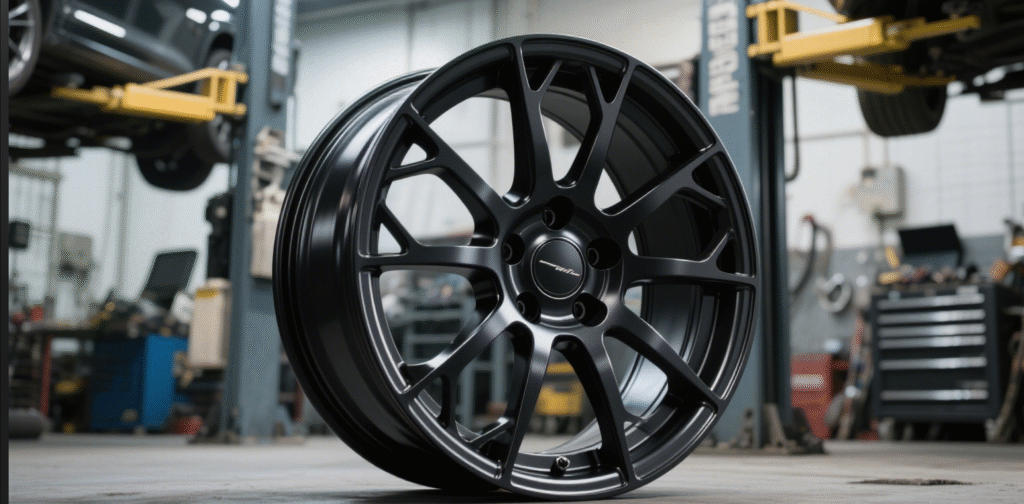

Automotive and Transportation

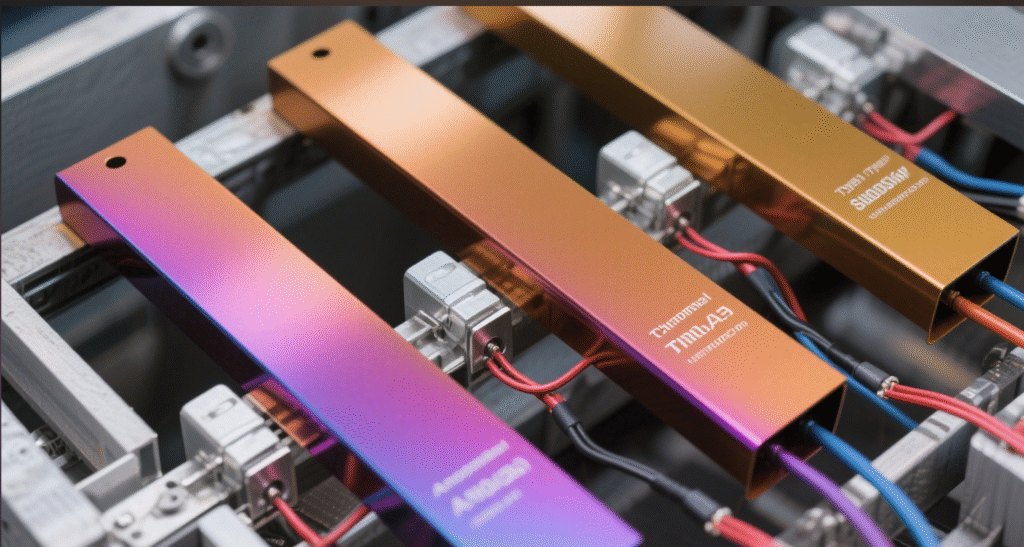

From trim pieces to engine components, anodizing enhances both appearance and performance in vehicles. Hardcoat anodizing protects gears and pistons from wear, while decorative anodizing improves exterior trim durability. Electric vehicles increasingly use anodized aluminum for heat sinks and battery components due to its thermal conductivity and corrosion resistance.

conclusion

Anodizing is a specialized electrochemical treatment that strengthens and protects metal surfaces, with aluminum being its primary application. This process works by creating a tough, porous oxide layer directly on the metal’s surface through electrolysis, where the metal serves as the anode in an electrolyte bath.​

This oxide layer, integral to the base material, offers exceptional corrosion resistance, wear durability, and a porous structure that allows for coloring and effective sealing. Common variants include sulfuric acid anodizing (versatile for most uses), chromic acid anodizing (ideal for aerospace due to minimal impact on fatigue strength), and hardcoat anodizing (for extreme wear scenarios).​

Key advantages lie in its ability to combine functionality with aesthetics—resisting environmental damage while accepting a range of colors. It’s widely adopted across industries: aerospace for component protection, architecture for durable facades, automotive for both trim and parts, and consumer goods for long-lasting finishes.​

In essence, anodizing enhances metal performance, extends product lifespan, and provides cost-effective surface solutions for diverse industrial and commercial needs.

Future Trends

Eco-friendly electrolytes: Alternatives to traditional sulfuric acid (e.g., tartaric-sulfuric mixes).

Nanostructured coatings: Improved wear/thermal properties via modified porous layers.
